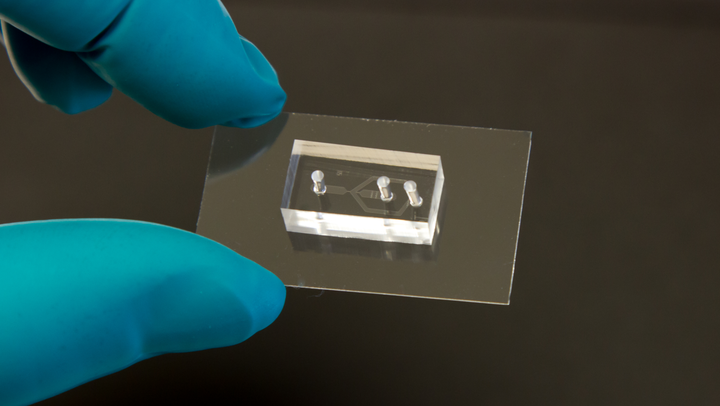

High precision, microfluidics - FlicXX

quality controlled, handmade, microfluidic chips

These are the microfluidic chips for the AcCellerator, with a narrow channel of cell-type specific cross-section. The cells are deformed by hydrodymic forces. FlicXX   are prepared under dust-free conditions and individually subjected to control. They are intended for single use only.

Channel cross-section: XX in FlicXX  stands for the cross-section in micrometer ± 7% (e.g. Flic20: (20 ± 1.5) μm

  • glass (borosilicate): 0.19-0.23 mm
  • PDMS (Polydimethylsiloxane)
  • we offer 15, 20, 30 and 40 µm channel cross-sections

microfluidic chips for active cell sorting with the sortingmodule

FlicSo   is a high quality  plastic chip.

  • one chip provides two channels: 20 µm and 30 µm
  • designed for 2-way sorting experiments using the SortingModule
  • easy connection between tube and FlicSo    through Luer connectors
  • comes with two triple-container  for connecting sorting pressure and collecting  target  and default samples

Details for the sample handling

The price

One FlicXX    is 22 €. The minimum order quantity of FlicXX    is 20.
One FlicSo   is  66 €. Ordering more than 100 pieces reduces the price to 44 €.   The minimum order quantity of FlicSo   is 10.
(only for business customers from academia, excl. VAT)

Any question, suggestion or criticism?
